Talet Auger Bucket – Mixing Auger

Talet Auger Bucket – Mixing Auger

$5,907.00

Call To Order

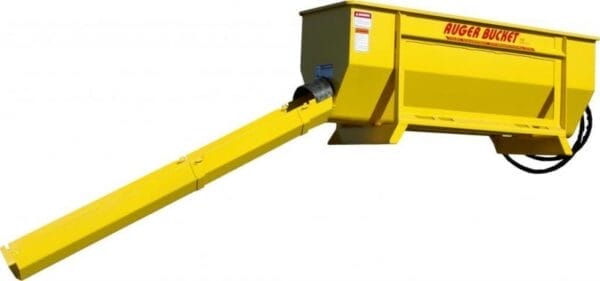

Talet Auger Bucket – Mixing Auger complete with 24″ and 36″ chutes, hoses and couplers, 1/2 yard capacity

Call To Order

SKU: 3120 - 420 Categories: ,
MPN: 3120
Manufacturer: Talet
Brand: Talet

Description

  • Multi-purpose bucket with horizontal rubber flighted steel auger. A full steel auger is also available for dry mixtures such as dirt, sand, grain, feed, etc.
  • Self loading from loose piles. A weld-on cutting edge is also available.

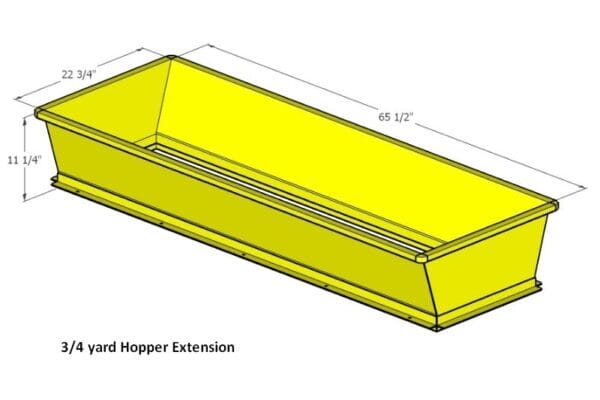

  • 1/2 yard capacity (3/4 yard capacity capable with optional hopper extension).
  • Skid-steer quick-attach frame on front and back allows right or left hand discharge.
  • Accurate and controlled discharge: 1/2 yard/ 50 secs.
  • Horizontal steel auger with orbital motor drive.
  • Excellent operator visibility (one person operation).
  • Two multi-link chutes included (1 – 24″ & 1 – 36″). Additional cutes can be ordered as needed.
  • Includes 84″ hoses & 1/2″ flat face couplers.
  • Mix concrete right in the bucket by operating auger in reverse direction.
  • Replaceable protective rubber flighting: prevents binding of coarse material.
  • Handles most materials: 1 slump concrete, sand, asphalt, washed gravel 3/4″ max., ag. grains etc.



Specifications 3000 Series
Length 73.5”
Width 22.5”
Height 29.5”
Weight 400-430 lbs.
Volume 13 cu. ft. (1/2 cu. yd.)
Volume (With Hopper Extension) 20 cu. ft. (3/4 cu. yd.)
Min. Hyd. Requirements 12 GPM
Auger Length 61.5”
Steel Auger Diameter (AS001) 5.75″
Rubber Auger Diameter (AD001 or AM002) 8.0″
Flighting Spacing 4.0″

Additional information

Weight 420 lbs
Dimensions 84 × 28 × 28 in
