Description

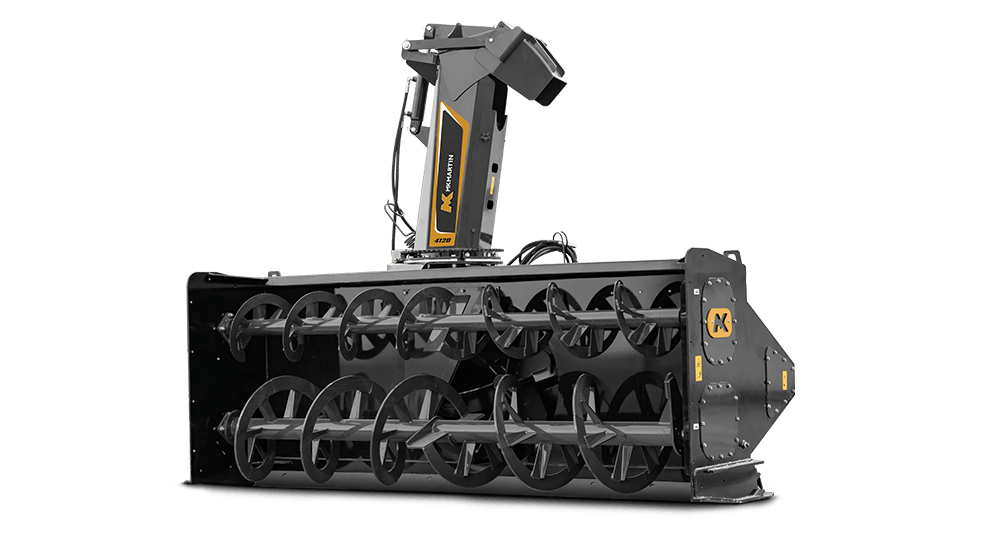

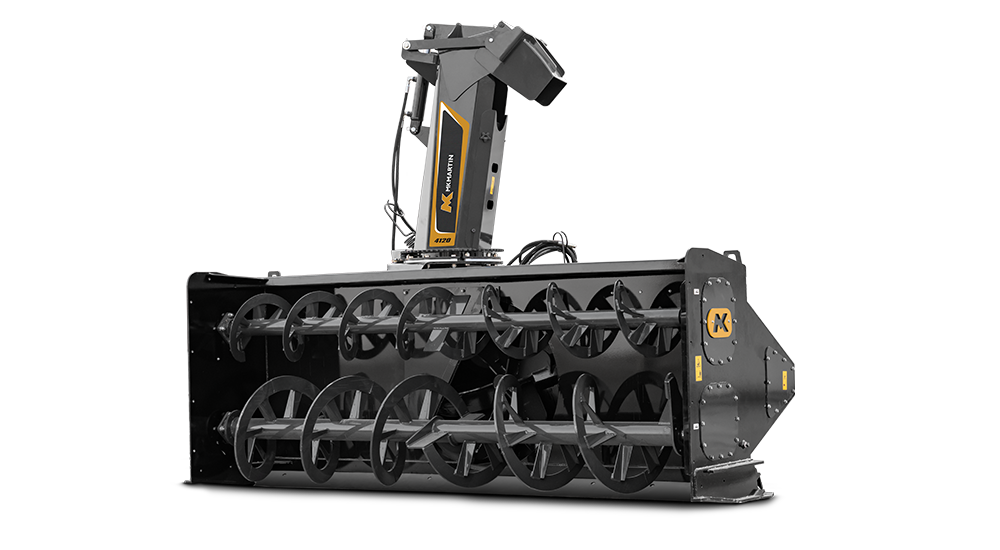

Introducing the MK Martin 4000 series commercial line of PTO snowblowers. This snowblower is designed for professional snow removal contractors and municipalities. These rugged commercial snowblowers are built for heavy snow clearing using HD 450 wear plates on many key elements. Compatible with tractors 150 HP up to 250 HP and with a clearing path of up to 120 inches, the MK Martin 4000 Series snowblowers move more snow with every pass – easily clearing deep drifts and hard-packed piles. They come with hydraulic rotation, deflection and hydraulically extendable truck loading chute.
Available in widths of 97″, 108″ and 120″.

HP (Rec.) 150 – 250
Cutting Width 97″
Main Body Height 47″
Mount CAT. 2 & 3
Impeller (Fan) 36″ – 3/8″ HD 450
Impeller Depth 12″
Impeller Blades 6
Impeller Output Shaft 2 1/2″
Rotating Housing NA
PTO Drive (RPM) 1,000
Stages 2
Rotor Ribbon Flighting (Flight Notching Available)
Rotor (Tube) 4 1/2″ OD HEAVY WALL
Rotor (Flighting) 1/2 x 3 (bottom) 5/16 x 2-1/4 (top)
Rotor (Diameter) 23″ (bottom) 15″ (top)
Rotor (Drive Shaft) 1-3/4″
Roller Chain #100
Cutting Edge 1/2″ x 6″ Heat Treated Bolt-On
End Plates 3/8″ HD 450 x 48″ high
Chute Diam. 13″
Chute Rotator Hyd.
Deflector Stages 2
Chute Deflector Hyd.
Weight 2,050 lbs.
