MK Martin 3PH Box Blade 60″

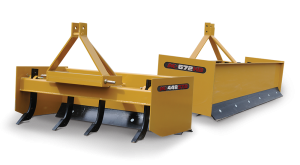

Note: 48″ and 72″ widths are pictured.
MK Martin 3PH Box Blade 60″
$1,598.00
1 in stock
1 in stock
Manufacturer: MK Martin
Brand: MK Martin
Description
The 3PH Box Blade by MK Martin provides the small and large property owner with affordable options for grading with their line of box Blades. Complete with steel cutting edges, height adjustable shanks, and a fully welded 3PH design these Box Blades really deliver.
The MK Box Blade features two steel cutting edges. One located on the inside of the box and one on the outside. These two reversible hardened steel cutting edges allow the operator to pull or push material.
Features:
Height Adjustable
The height adjustable scarifier shanks break up the soil allowing the cutting edge to redistribute the material as the box Blade is pulled along.
Replaceable Scarifier Tips
Control how deep the scarifier rips with the Box Blades easy to use pin adjustment on the shanks. Removeable shanks feature replaceable scarifier tips.
Dual Reversible Cutting Edges
The MK Box Blade features two steel cutting edges. One located on the inside of the box and one on the outside. These two reversible hardened steel cutting edges allow the operator to pull or push material.
Fully Welded 3PH Design
More photos at: https://mkmartin.ca/products/boxBlade.php
| Model | Width | Shanks | Mouldboard | End Plates | 3PH Mount | Max HP | Weight (LBS.) |
| 448 STD | 4′ | 4 | 3/16″ | 1/4″ | CAT. 1 | 35 HP | 308 |
| 560 STD | 5′ | 4 | 3/16″ | 1/4″ | CAT. 1 | 35 HP | 348 |
| 566 HD | 5’6″ | 5 | 3/16″ | 1/4″ | CAT. 1 | 45 HP | 415 |
| 672 HD | 6′ | 6 | 3/16″ | 1/4″ | CAT. 1 | 45 HP | 450 |
| 784 HD | 7′ | 7 | 3/16″ | 1/4″ | CAT. 1 | 45 HP | 500 |
| 784 DLX | 7′ | 7 | 1/4″ | 1/4″ | CAT. 2 | 75 HP | 555 |
| 896 DLX | 8′ | 8 | 1/4″ | 1/4″ | CAT. 2 | 75 HP | 612 |
Additional information
| Weight | 348 lbs |
|---|
