Description

FOR WHEEL LOADERS UP TO 40,000 POUNDS

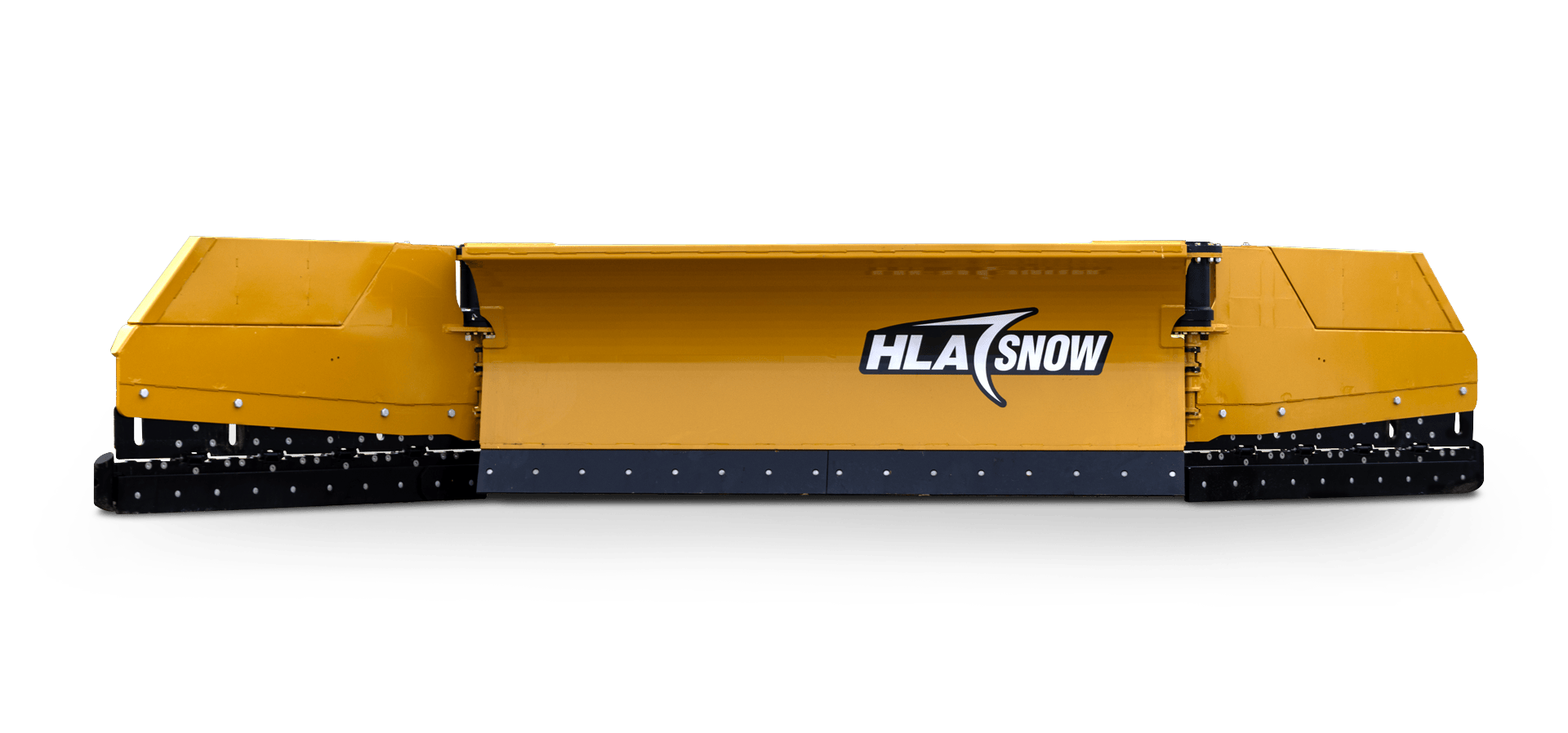

This new blade from HLA has a spring trip system on the wing edges. It features huge 6′ wings for clearing snow in wide passes. The 10′ blade opens up to a 22′ width.

•Nitrate rods on angle cylinders
• Double electric selector valve with
electro-hydraulic harness kit. 12V or 24V
coils available.
• Spring-trip on cutting edge
• 42” high mouldboard
• Lateral float
• Two 3 x 16 angle cylinders
• 35° angle either direction
• Skid shoes (non Edge Flex only)
• Cross-over relief valve protection

•Reversible cutting edge (non Edge Flex
only)
• Heavy duty construction on mouldboard,
framework and tripping edge
• Maximum clearing width 12’ wider than
main mouldboard width
• Wings 72” deep / wide
• 2 Year Commercial Warranty

Also available in 12′ to 24′ configuration
