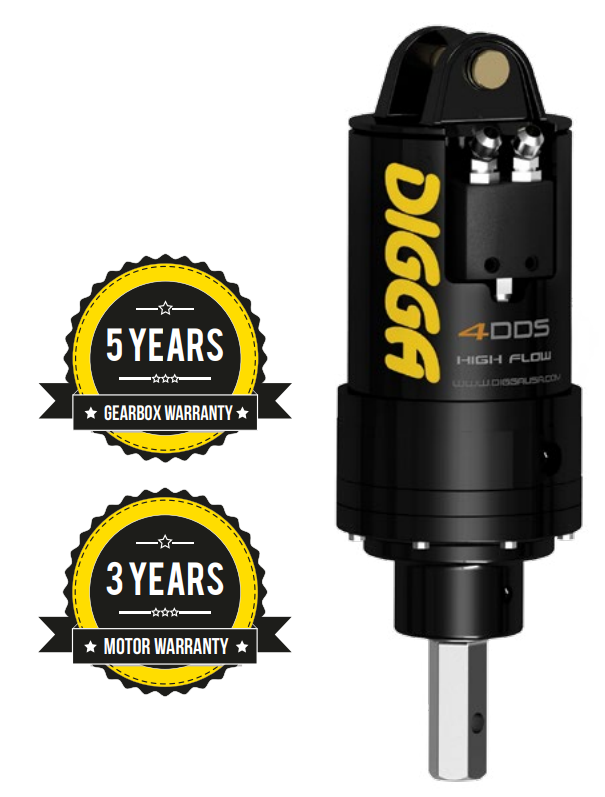

Digga 4DDS HIGH FLOW Auger Drive – Skid steer mount with hoses and couplers

Description

Drilling Drives for High Flow Skid Steer Loaders

Digga’s range of drilling drives for high flow skid steer loaders are the ultimate in performance, quality and cost effectiveness. Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.

Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximise drilling depth without extensions.

Industry leading manufacturer’s warranty.

Features

• Compact high torque Digga manufactured gearbox
• Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
• 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
• Single speed & two speed models available
• Lifetime shaft pull out warranty
• 5 year gear box and 3 year motor warranty
• Over 30 years design and manufacturing experience
• Recommended flow 10 to 36 gpm
• Max torque 4,180 ft lbs at 3500 psi (see spec sheet for details)
