Back Hoe GX720
Call for Price

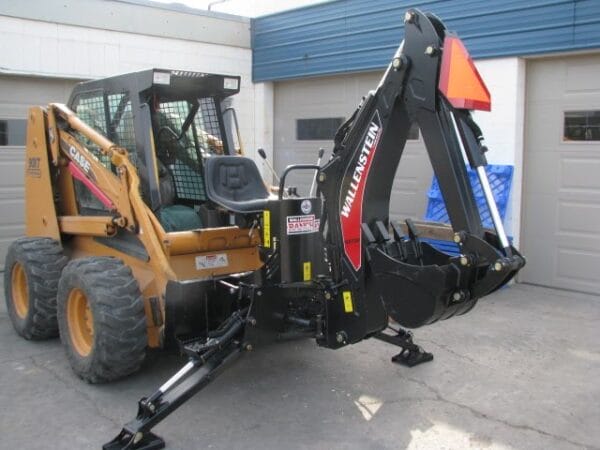

Back Hoe GX720, Wallenstein
Call for Price
Description
Versatile backhoe attachment for your tractor or skidsteer. This skid steer backhoe is made in Canada by Wallenstein Equipment and is backed by Wallenstein’s 5 year residential use warranty.
Bucket widths from 9″ to 24″ available. Hydraulic stabilizers, optional mechanical thumb, ripper tooth, and quick change bucket adapter.
Give us a call at 250-573-7686 to discuss a backhoe package for your tractor or skid steer.
| Digging Depth: | 7′ 8″ (234 cm) |
|---|---|
| Engine HP Range (Tractor): | 30 – 65 |
| Engine HP Range (Skidsteer): | 30 – 75 |
| Required Hydraulic Flow: | 5 – 27 gpm (19 – 102 lpm) |
| Stabilizer Width (Spread) : | 89″ (226 cm) |
| Main Boom Cylinder Diameter : | 3″ (76 mm) |
| Dipper Cylinder Diameter : | 2.5″ (64 mm) |
| Bucket Cylinder Diameter: | 2.5″ (64 mm) |
| Number Of Swing Cylinders: | 2 |
| Swing Cylinder Diameter: | 2.5″ (64 mm) |
| Stabilizer Cylinder Diameter: | 2.5″ (64 mm) |
| Reach From Swing Post : | 123″ (312 cm) |
| Includes Flow Divider: | Yes |
| Bucket Rotation: | 180° |
| Swing Arc: | 180° |
| SAE* Dipper Boom Digging Force: | 2300 lbs (1043 kg) |
| SAE* Bucket Digging Force: | 3800 lbs (1724 kg) |
| Boom Lift Capacity: | 925 lbs (420 kg) |
| Ground Clearance: | 10.5″ (27 cm) |
| Loading Height: | 80″ (203 cm) |
| Overall Operating Height (Fully Raised): | 119″ (302 cm) |
| Total Weight: | 765 lbs (347 kg) |
| Transport Dimensions (LxWxH): | 80″ x 43″ x 79″ (203 cm x 109 cm x 201 cm) |
| Operating Pressure: | 2250 psi (15513 kPa) |
| Mounting System: | Subframe, Skidsteer Universal Plate, PT302 (Cat I), PT322 (Cat II) |
